2016 redesign
Extended grip profile handles wider, heavier banded rolls without destroying cardboard cores.
2.75" – 3.25" cardboard cores
Roll Puller™ RP3XL
Sized for standard paving-fabric and geotextile rolls shipped singly or banded in pairs and trios. One operator, one puller, one clean pull.
RP3XL specifications.
| Spec | Value |
|---|---|
| Core ID range | 2.75" – 3.25" |
| Minimum core thickness | 0.5" |
| Tested max pull limit | 1,000 lb per puller |
| Best fit | Standard paving-fabric and geotextile rolls, singly or banded in pairs and trios |
| Construction | Machined shaft steel, forged ring double-welded, laser-cut armor plate teeth |
| Warranty | 90 days against defects from date of purchase with proper use |
| Patents | Multiple U.S. and foreign patents pending |
Ask about custom sleeves if your supplier uses non-standard core IDs.
Engineered for safe, repeatable unloading.
Deeper core bite
Penetrates approximately four inches deeper than previous versions to spread load and multiply core capacity.
Laser-cut armor teeth
Patent-pending precision-cut teeth maintain a sharp bite on slick liners and reduce slippage.
Forged shaft + ring
A forged ring threaded and double-welded onto machined shaft steel — pull from any angle.
Mechanics up close
How the Roll Puller actually works.
Armor-plate teeth, forged ring, and double-welded shaft in motion.
Product photos.
Full product — RP3XL in ready position.

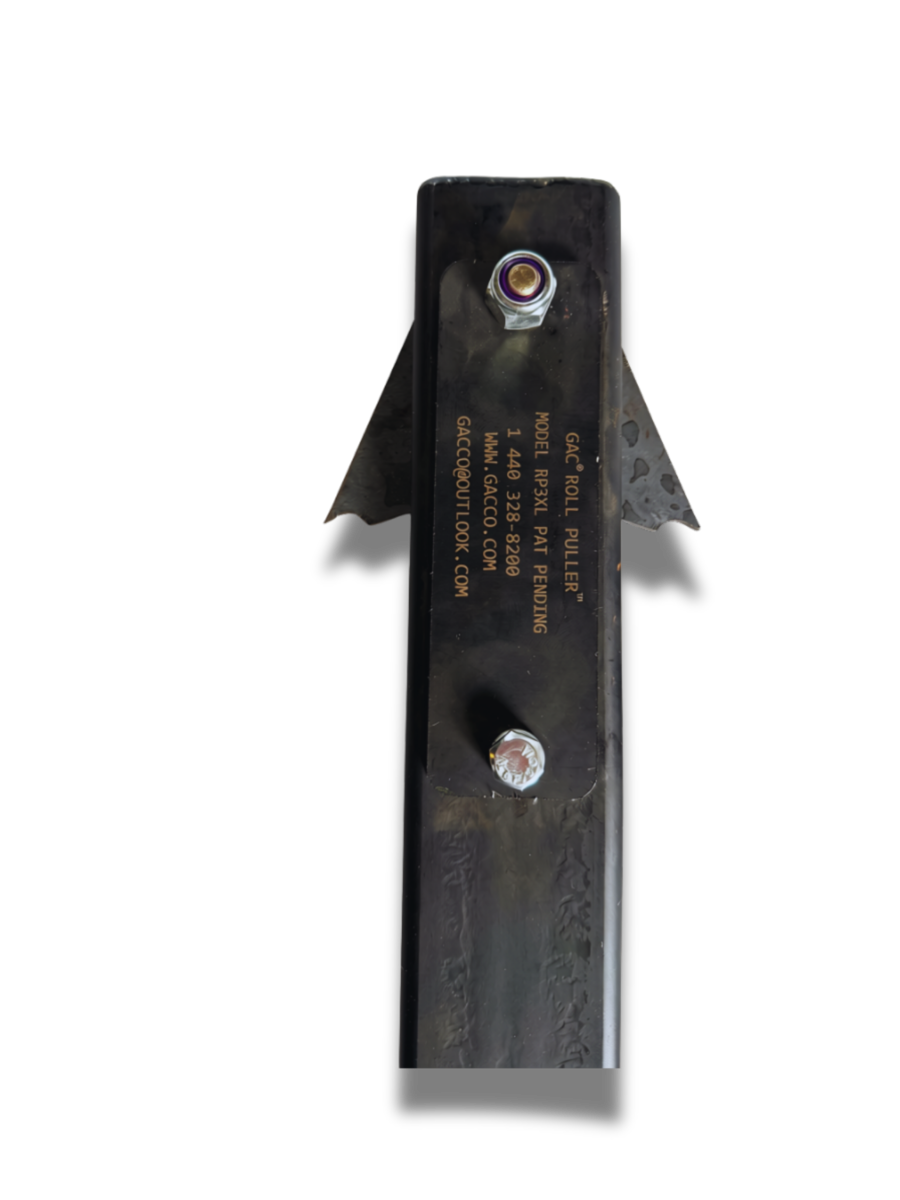

Model plate detail — GAC branding & contact stamped on every unit.
Workflow & best practices.
Recommended technique
- Insert horizontally until the teeth seat, then lift slightly or pull level.
- Guide rolls along rails, a dolly, or a waiting forklift to prevent core drag.
- Never pull downward — downward angles add friction and can tear the core wall.
- Stand by the side of the truck, not behind the ropes or chains.

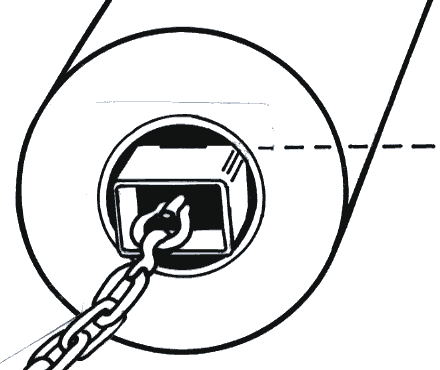

Chain attaches to the forged ring — teeth bite the core.
Operational benefits
- One operator unloads full containers in minutes.
- Reduces shoulder and back injuries from prying rolls manually.
- Protects expensive rolls from crushed cores.
- Multiple pullers unload trucks up to 10× faster.
Ready to order?
We'll send pricing and shipping same-day. Include quantity and your shipping ZIP code.

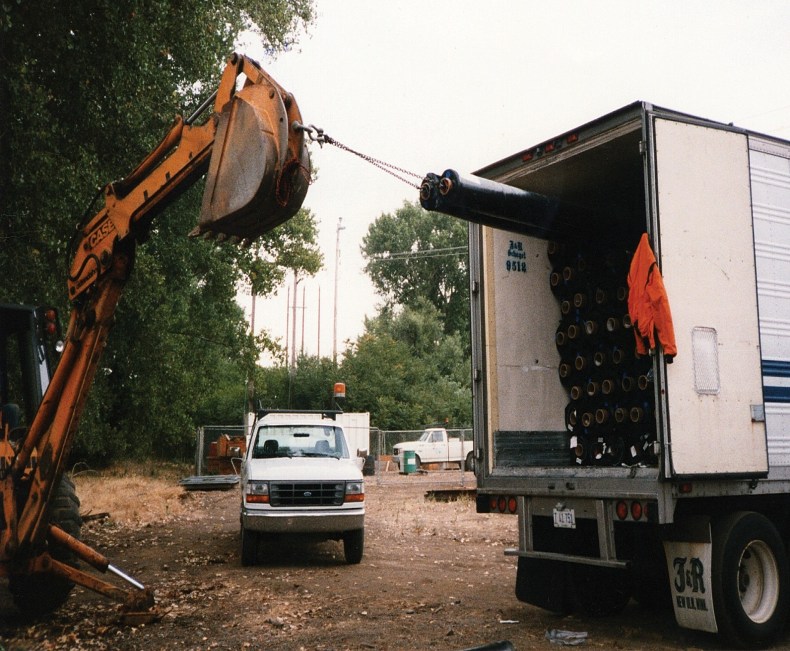

In the field
Not staged — actual dock, actual pull.
Excavator, chain, RP3XL, standard J&R box truck full of geosynthetic rolls.
Safety First
Roll Pullers don't break with proper use. Chains, cables, and ropes do.
Rules of the dock
- Never exceed the Working Load Limit (WLL). WLL is lower than the breaking strength — that's the point.
- Stand at the side of the truck, not behind or in line with the pull.
- Do not stand by the ropes or chains. A snapped rigging line kills.
- Watch OSHA regulations. Never assume common sense — train every operator.
Warranty
90-day warranty against defects from date of purchase with proper use. Full instructions are included with every order and printed in the Roll Puller™ flyer.
